Views: 0 Author: Site Editor Publish Time: 2025-01-29 Origin: Site
In the realm of mechanical systems, vibration and noise are persistent challenges that can lead to operational inefficiencies, equipment degradation, and environmental disturbances. The quest for effective solutions has led engineers to explore various methods of damping and isolation. Among these, the rubber compensator has emerged as a pivotal component in mitigating vibration and noise, enhancing the longevity and performance of mechanical assemblies.
Vibrations are oscillatory motions of mechanical components resulting from dynamic forces. They can be categorized into free vibrations, which occur without external force after an initial disturbance, and forced vibrations, occurring due to external periodic forces. In mechanical systems, imbalances, misalignments, gear meshing, and other operational factors contribute to unwanted vibrations.
Noise, often an undesirable byproduct, is the audible manifestation of these vibrations. Prolonged exposure to high noise levels can lead to auditory health issues and interfere with communication in industrial settings. According to the Occupational Safety and Health Administration (OSHA), the permissible exposure limit for noise is 90 decibels over an eight-hour period. Excessive noise can also lead to increased stress levels among workers, impacting overall productivity.
The control of vibration and noise is essential for maintaining the integrity and efficiency of machinery. Traditional methods include rigid supports and damping materials; however, these solutions may not effectively address the dynamic nature of mechanical vibrations. This necessitates the adoption of more sophisticated components like rubber compensators that offer both flexibility and damping properties.
Rubber compensators, also known as rubber expansion joints, are flexible connectors installed in piping systems and machinery to absorb movements and vibrations. Constructed from elastomeric materials, they provide elasticity and resilience, allowing them to accommodate thermal expansion, mechanical vibrations, and misalignments.
The design of rubber compensators involves the integration of elastomeric materials with reinforcing elements. The elastomer provides flexibility and damping, while the reinforcement, often composed of metal rings or synthetic fibers like nylon or polyester, imparts strength and pressure resistance. Finite Element Analysis (FEA) is employed in the design phase to simulate the compensator's performance under various load conditions, ensuring reliability within specified parameters.
The core functionality of a rubber compensator lies in its ability to act as a buffer between components. By absorbing vibrational energy, it reduces the transmission of vibrations and noise through the system. Additionally, the inherent damping characteristics of rubber materials convert kinetic energy into thermal energy, further attenuating vibrations.
Advanced designs of rubber compensator incorporate multiple reinforcement layers, enhancing their strength and durability. This construction enables them to withstand high pressures and temperatures, making them suitable for demanding industrial applications. The end connections, such as flanges or threaded unions, are designed to integrate seamlessly with existing piping systems, utilizing materials like galvanized steel or stainless steel for corrosion resistance.
Rubber compensators come in various types, each designed to meet specific operational requirements:

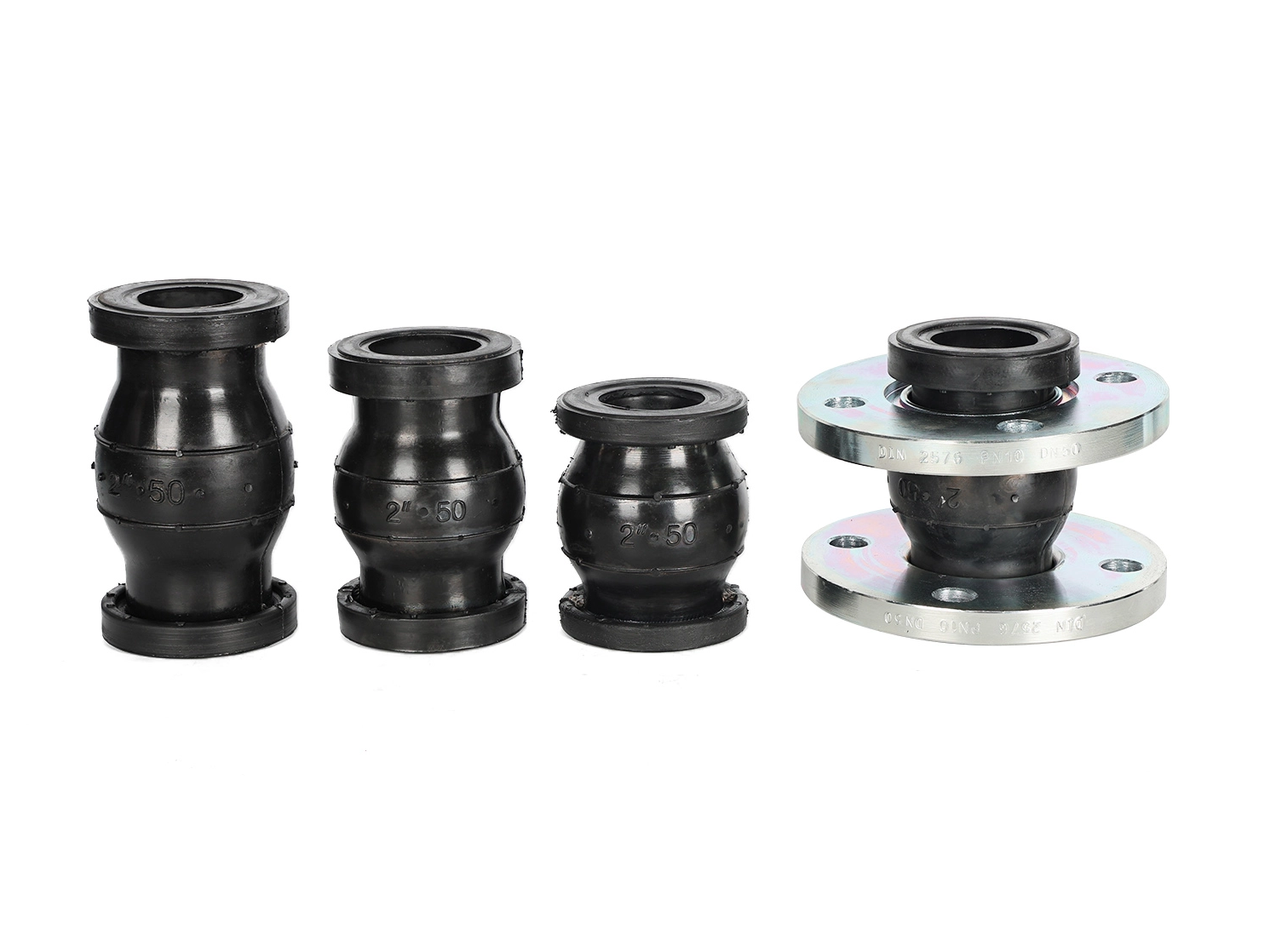

Characterized by a single convolution, these compensators allow for moderate flexibility in absorbing axial, lateral, and angular movements. They are commonly used in systems where space constraints exist and moderate vibration isolation is sufficient.
Featuring two convolutions, double sphere compensators offer greater flexibility compared to their single sphere counterparts. They are ideal for applications requiring higher movement absorption and greater vibration and noise reduction.
Designed to fit non-linear piping configurations, elbow and custom-shaped compensators accommodate complex system geometries. They maintain the integrity of the piping system while effectively managing vibrations and thermal expansions.
The versatility of rubber compensators makes them essential components across multiple industries:
In Heating, Ventilation, and Air Conditioning (HVAC) systems, rubber compensators mitigate vibrations from pumps and compressors, preventing transmission to the building structure. This contributes to a quieter and more comfortable environment.
Industries such as chemical processing, oil and gas, and power generation utilize rubber compensators to absorb thermal expansions and mechanical vibrations in piping systems. This reduces stress on pipes and joints, minimizing the risk of leaks and failures. A study by the Chemical Industry Digest reported a 60% reduction in maintenance costs associated with pipeline corrosion and vibrations over a five-year period due to the use of rubber compensators.
On ships and offshore platforms, rubber compensators are critical in handling the complex movements and vibrations due to engine operations and sea conditions. They enhance the safety and longevity of onboard piping systems. Their ability to withstand corrosive sea environments adds to their suitability for marine use.
Rubber compensators are employed in plumbing and firefighting systems within buildings to accommodate thermal expansions and reduce noise transmission from pump vibrations and water hammer effects. Implementing these compensators in municipal water treatment facilities has led to a 40% reduction in repair costs associated with water hammer incidents.
The integration of rubber compensators offers numerous advantages:
By absorbing vibrations, rubber compensators reduce mechanical stress on equipment components. This leads to decreased wear and tear, extending the service life of machinery and reducing maintenance costs. Industries have reported a 25% increase in equipment uptime after their installation.
Vibration-induced failures can result in catastrophic events, including pipe ruptures and machinery breakdowns. Rubber compensators mitigate these risks by relieving stress concentrations and allowing for safe thermal expansions. This enhances the overall safety of operations in high-risk environments.
By dampening vibrations, rubber compensators significantly lower noise levels. This contributes to a better working environment and complies with occupational health and safety regulations regarding noise exposure. Workers experience reduced stress levels, leading to improved productivity and morale.
The initial investment in rubber compensators can result in long-term cost savings. Reduced maintenance requirements, prevention of equipment failures, and compliance with environmental regulations add to their economic benefits. Companies have observed significant returns on investment through decreased downtime and repair expenses.
A prominent example of rubber compensator application is in the oil and gas industry. An offshore drilling platform experienced frequent pipeline failures due to vibrations from drilling operations. The installation of rubber compensators, specifically designed for high-pressure environments, resulted in a 70% decrease in vibration levels. This not only extended the lifespan of the pipelines but also enhanced operational safety.
In the HVAC sector, a large commercial building suffered from excessive noise transmitted through the ductwork due to the operation of heavy-duty compressors. Implementing rubber compensators between the compressors and the duct system led to a significant noise reduction, improving tenant satisfaction and reducing complaints.
In municipal water treatment facilities, rubber compensators have been installed to address the water hammer effect—a pressure surge resulting when fluid in motion is forced to stop or change direction suddenly. The compensators absorb the shock waves, protecting valves and pipelines from damage. This has led to substantial reductions in repair costs and system downtime.
The effectiveness of rubber compensators in vibration damping is grounded in the material's viscoelastic properties. Viscoelasticity refers to materials that exhibit both viscous and elastic characteristics when undergoing deformation. The Maxwell and Kelvin-Voigt models are commonly used to describe the behavior of viscoelastic materials under stress.
When subjected to dynamic loading, rubber materials dissipate energy through internal friction mechanisms. This damping effect reduces the amplitude of vibrations transmitted through the material. The loss factor (tan δ), representing the phase difference between stress and strain, quantifies the material's damping capacity. A higher loss factor indicates greater energy dissipation.
Advanced rubber compounds are engineered to optimize damping properties while maintaining mechanical strength. The incorporation of fillers, such as carbon black or silica, enhances the mechanical characteristics and durability of the rubber compensator.
Choosing an appropriate rubber compensator requires consideration of several factors:
The rubber material must be compatible with the media flowing through the system. For instance, EPDM rubber is suitable for water and steam applications, while NBR rubber is ideal for oil and petrochemical use. Selecting incompatible materials can lead to rapid degradation and failure of the compensator.
It's essential to select a compensator that can withstand the system's operational pressures and temperatures. Overloading a compensator beyond its design limits can lead to premature failure. Manufacturers provide detailed specifications that must be adhered to for safe operation.
Assess the expected axial, lateral, and angular movements to ensure the compensator can accommodate them. This involves calculations based on thermal expansion coefficients and mechanical vibration amplitudes. Using the EJMA standards helps in accurately determining these requirements.
Environmental factors such as exposure to UV radiation, ozone, or chemicals can affect the durability of the rubber material. Selecting a compensator with suitable protective features or materials enhances longevity. In outdoor applications, UV-resistant materials extend the service life of the compensator.
Consultation with engineers and specialists is recommended when selecting rubber compensators for critical applications. Computational simulations and stress analysis can aid in predicting performance under expected operating conditions. High-quality rubber compensator options are available that meet industry standards and specific operational demands.
Recent developments in material science have led to the introduction of rubber compensators with enhanced properties. The use of thermoplastic elastomers (TPE) and fluoroelastomers provides superior chemical resistance and temperature stability. These materials enable compensators to perform effectively in extreme environments.
Nanocomposite materials, incorporating nanoparticles such as graphene or carbon nanotubes, are being explored to improve mechanical strength and longevity. These materials offer the possibility of compensators that can withstand extreme conditions without compromising flexibility or damping capabilities.
Furthermore, intelligent rubber compensators equipped with sensors are under research and development. These smart compensators could monitor stress, deformation, and environmental conditions in real-time, providing valuable data for predictive maintenance and system optimization. Integrating Internet of Things (IoT) technology enhances the ability to manage large-scale systems efficiently.
Proper installation is critical to the performance of rubber compensators. Key practices include:
Regular maintenance checks should include:
Implementing these practices ensures the rubber compensators function effectively and extends their operational life. For comprehensive guidance on installation and maintenance procedures, manufacturers often provide detailed manuals and support services for their rubber compensator products.
In conclusion, the strategic application of rubber compensators is integral to the modern approach of managing vibrations and noise in mechanical systems. Their role extends beyond mere components to being essential elements that safeguard the functionality and reliability of complex machinery and piping infrastructures.
As industries continue to advance, the emphasis on efficient, safe, and sustainable operations grows. Rubber compensators, with their proven effectiveness and adaptability, align with these objectives. By investing in research and embracing innovations in materials and design, the potential of rubber compensators can be further realized, addressing emerging challenges in vibration and noise control.
Ultimately, understanding the critical role of rubber compensators enables engineers and decision-makers to enhance system performance, reduce operational risks, and contribute to a quieter, safer, and more efficient industrial environment.
