In the field of civil engineering, concrete structures are prevalent due to their durability and versatility. However, concrete is susceptible to dimensional changes caused by temperature fluctuations, moisture variations, and other environmental factors. These changes can lead to cracking and structural failures if not properly managed. To mitigate these issues, engineers incorporate joints into concrete structures. The two primary types of joints used are expansion joints and contraction joints. Understanding the differences between these joints is crucial for ensuring the longevity and integrity of concrete constructions.
Concrete is a composite material that exhibits both elastic and plastic behaviors. It expands when temperatures rise and contracts when temperatures drop. Additionally, concrete undergoes shrinkage during the curing process due to the loss of water content. These dimensional changes necessitate the incorporation of joints to absorb movements and prevent uncontrolled cracking.
Thermal movements in concrete are a result of temperature variations in the environment. The coefficient of thermal expansion for concrete is approximately 10 x 10-6 per °C. For large structures, this can result in significant dimensional changes. For example, a 100-meter-long concrete slab can expand or contract by about 1 millimeter for every 10°C change in temperature. Without proper joints, these movements can induce stress and lead to cracks.
As concrete cures, it loses moisture and undergoes shrinkage. This phenomenon is more pronounced in the initial stages after placement. Drying shrinkage can cause tensile stresses within the concrete, leading to surface cracks. Incorporating contraction joints helps to control the location and appearance of these cracks.
Expansion joints are designed to absorb the expansion of concrete structures due to temperature increases. They are gaps or separations between sections of concrete that allow for movement without inducing stress. These joints are typically filled with a compressible material that can accommodate the expansion while providing a seal against moisture and debris.
Expansion joints are created by leaving a deliberate gap between concrete sections. The gap's width is calculated based on the anticipated thermal movement, which depends on the structure's length, the coefficient of thermal expansion, and the expected temperature range. Common filler materials include bituminous fiberboard, rubber, and foam. The use of an expansion joint filler with appropriate properties is essential to maintain the joint's functionality over time.
Expansion joints are commonly used in long expanses of concrete such as bridges, roads, and sidewalks. They are also critical in structures exposed to significant temperature variations, such as buildings in regions with hot summers and cold winters. For example, in bridge construction, expansion joints accommodate the movements of the deck caused by thermal expansion and contraction, as well as traffic loads.
Contraction joints, also known as control joints, are intended to control cracking that results from drying shrinkage and temperature contraction. These joints create a weakened plane in the concrete, encouraging cracks to form at predetermined locations. This improves the aesthetic appearance and structural performance by preventing random cracking.
Contraction joints are typically formed by saw-cutting the hardened concrete to a specific depth, usually one-quarter of the slab thickness. Another method involves inserting joint formers or pre-molded strips into the concrete surface before it sets. The spacing of contraction joints depends on the slab thickness and the type of concrete used. For instance, for a 100mm thick slab, joints are often spaced at 3 meters apart.
The primary benefit of contraction joints is the controlled management of cracking. By dictating where cracks will occur, engineers can enhance the durability and appearance of the concrete surface. However, contraction joints do not accommodate expansion; they only mitigate shrinkage and contraction effects. Therefore, in structures where thermal expansion is significant, contraction joints must be complemented with expansion joints.
While both expansion and contraction joints aim to manage concrete movements, they serve different purposes. Expansion joints allow for the expansion of concrete, preventing compressive stresses that can lead to buckling or crushing. In contrast, contraction joints control where cracking occurs due to shrinkage and contraction, preventing random and uncontrolled cracks.
Expansion joints are necessary in structures where temperature-induced expansion could cause significant stress. For example, in large concrete pavements exposed to sunlight, thermal expansion can push against adjacent slabs, leading to heaving. Contraction joints are more relevant in controlling shrinkage cracks during the curing process. They ensure that any cracks that do form are straight and less visible.
The installation of expansion joints requires precise calculations to determine the appropriate joint width and filler material. The joints must remain functional over the structure's lifespan, resisting weathering and load-induced wear. Contraction joints need to be installed at the correct depth and spacing to be effective. Improper saw-cutting depth can render them ineffective, leading to random cracking.
Several real-world projects highlight the importance of proper joint implementation. In the construction of a highway in Arizona, engineers utilized expansion joints every 50 meters to accommodate extreme temperature variations ranging from 0°C to 45°C. This prevented pavement buckling and extended the road's lifespan.
In a commercial building project in New York, incorrect spacing of contraction joints led to uncontrolled cracking in the concrete floor slabs. The oversight resulted in costly repairs and highlighted the necessity of adhering to joint placement guidelines.

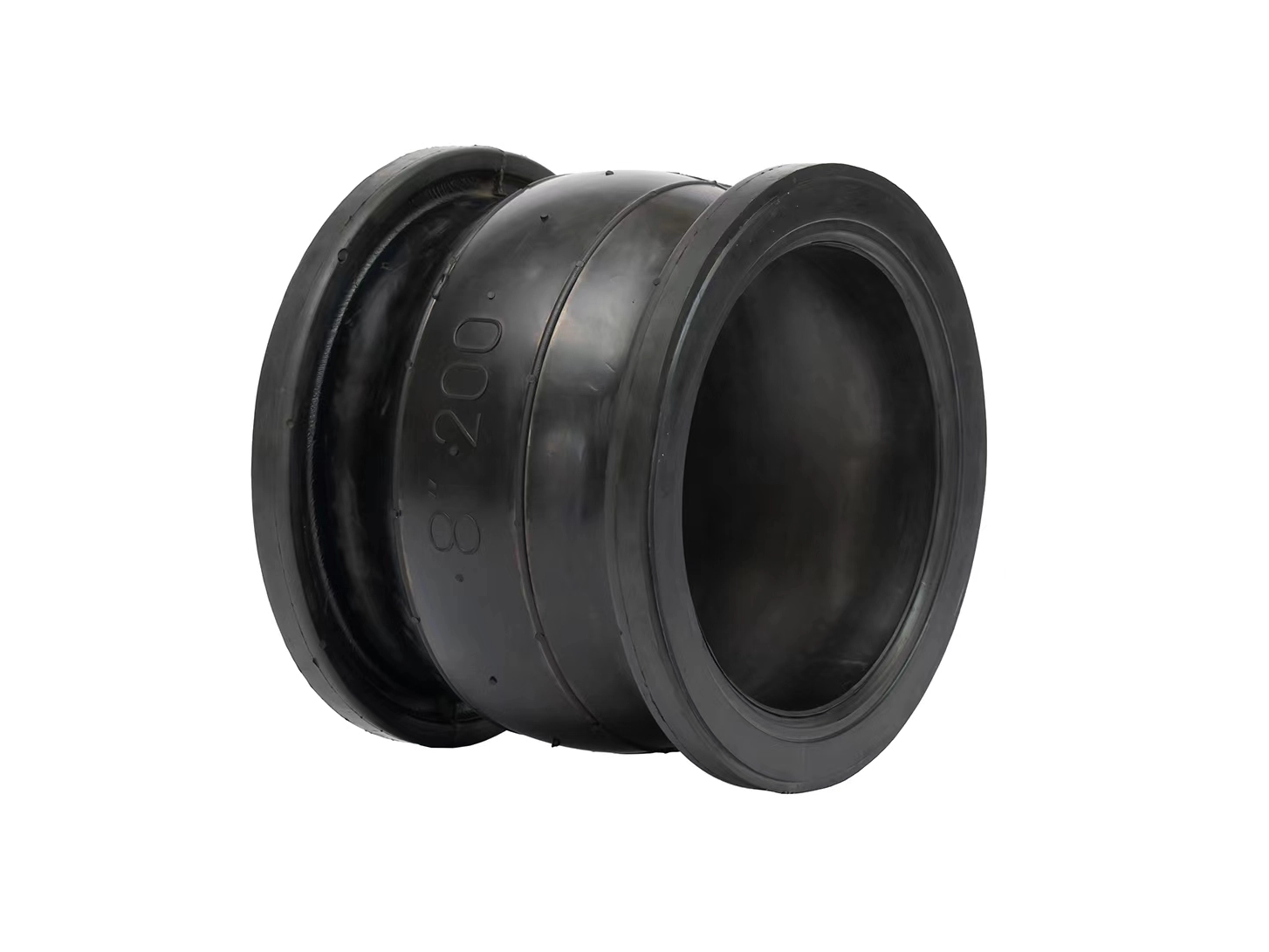

Modern materials and technologies have improved joint performance. The development of flexible fillers like rubber and polymer-based materials allows for better accommodation of movements. The use of an advanced expansion joint made from EPDM rubber enhances durability and resistance to environmental factors.
Additionally, implementing joint systems with built-in waterstops can prevent moisture ingress, which can lead to corrosion of reinforcement and freeze-thaw damage. Technologies like pre-compressed foam expansion joints are gaining popularity for their ease of installation and superior performance.
Engineers should conduct thorough analysis when designing joints in concrete structures. This includes considering the environmental conditions, material properties, and load expectations. For expansion joints, selecting the appropriate filler material is crucial. Materials should maintain elasticity over time and under varying temperatures.
For contraction joints, precise timing of saw-cutting is essential. Cutting too early can cause raveling of the concrete edges, while cutting too late may allow cracks to form elsewhere. Utilizing early-entry dry-cut saws can mitigate some timing issues.
In conclusion, both expansion and contraction joints play vital roles in the longevity and performance of concrete structures. Understanding their differences and applications enables engineers to design more durable and resilient constructions. The appropriate use of an expansion joint can significantly reduce maintenance costs and extend the service life of infrastructure.
Future developments in materials science and engineering practices will continue to enhance joint effectiveness. Ongoing research into smart materials that can adapt to environmental changes shows promise. By staying informed and applying best practices, engineers can ensure that concrete structures meet the demands of their intended use while mitigating the risks associated with thermal movements and shrinkage.
