Views: 0 Author: Site Editor Publish Time: 2025-01-14 Origin: Site
In modern piping systems, flexibility and durability are paramount for efficient operation and longevity. One of the key components that contribute to these characteristics is the rubber joint. These joints play a critical role in absorbing vibrations, accommodating thermal expansion, and mitigating mechanical stresses within the pipeline infrastructure. This article delves into the mechanisms by which rubber joints enhance flexibility in piping systems, discussing their design, application, and impact on system performance.

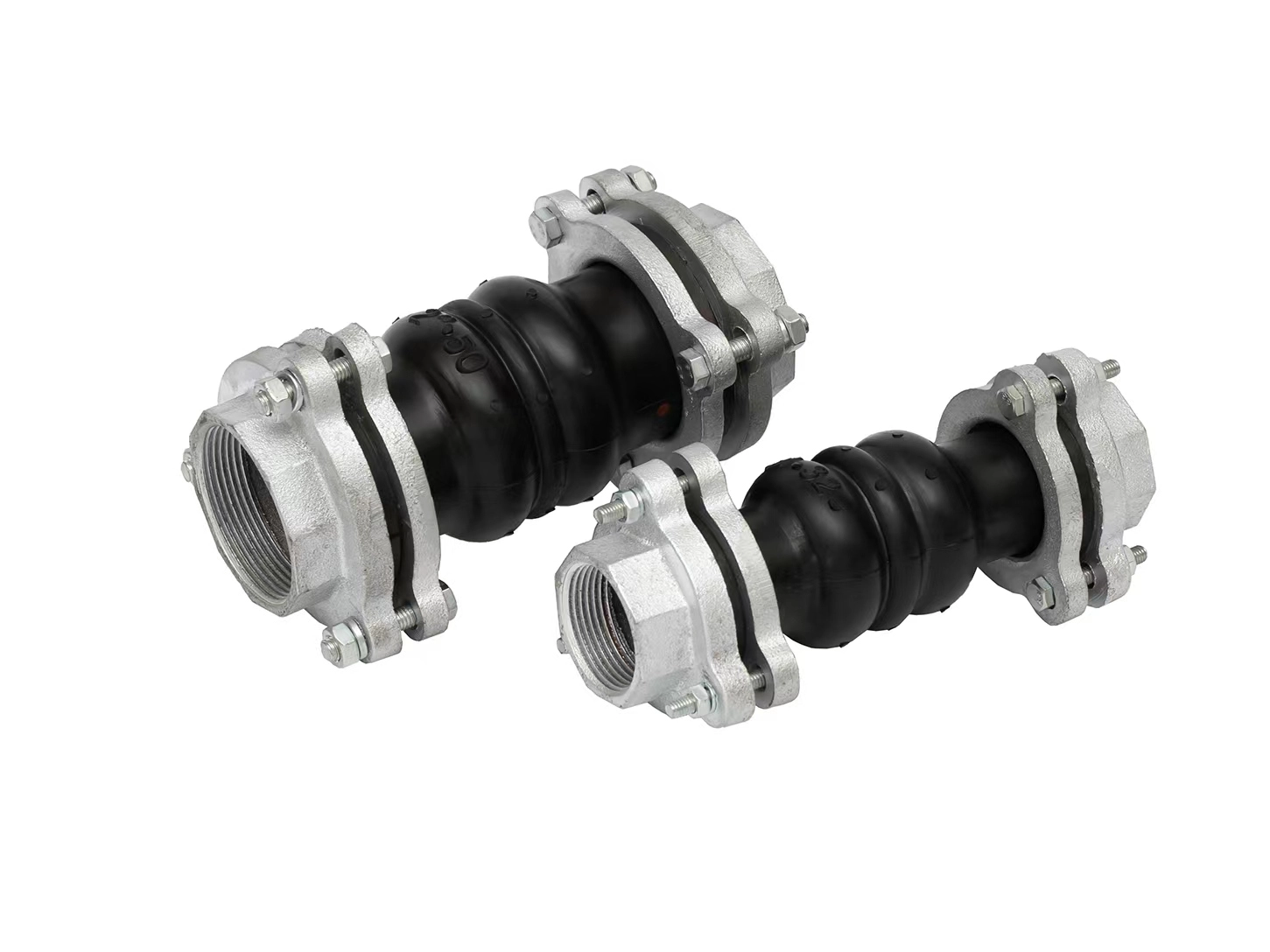

Rubber joints, also known as rubber expansion joints, are engineered to provide flexibility and stress relief in piping systems. Composed of elastomeric materials, these joints can absorb movements caused by thermal expansion, contraction, and mechanical vibrations. The fundamental design incorporates layers of rubber and fabric reinforcements that enable the joint to stretch, compress, and flex without compromising the integrity of the piping system.
The choice of materials for rubber joints is critical to their performance. Common elastomers used include EPDM, NBR, and Neoprene, each offering specific resistance properties to chemicals, temperature, and environmental conditions. The construction often involves a combination of synthetic fibers and steel reinforcements to enhance strength and pressure tolerance. Advances in material science have allowed for the development of rubber joints that can withstand higher pressures and temperatures, expanding their applicability across various industries.
There are several types of rubber joints designed for specific applications:
Flexibility in piping systems is crucial to accommodate various dynamic forces that can cause stress and potential failure. Rubber joints mitigate these issues through several mechanisms.
Equipment such as pumps and compressors introduce vibrations into piping systems. Rubber joints act as dampers, absorbing these vibrations and preventing them from propagating through the system. This not only protects the integrity of the pipes but also reduces noise levels and prolongs the life of connected equipment.
Temperature variations cause pipes to expand and contract. Without flexibility, this can lead to joint failure or pipe deformation. Rubber joints accommodate these dimensional changes, maintaining a secure and leak-proof connection. This is particularly important in systems exposed to extreme temperature fluctuations.
Installation inaccuracies or foundation settling can result in pipe misalignment. Rubber joints provide the necessary flexibility to compensate for minor misalignments in axial, lateral, and angular directions. This reduces stress on the pipes and connected equipment, preventing potential failures.
The versatility of rubber joints makes them indispensable in various industries. Their ability to enhance flexibility and reduce mechanical stress is leveraged in the following sectors:
In water treatment facilities, rubber joints accommodate the thermal expansion of pipes and reduce the transmission of pump vibrations. They are resistant to the corrosive nature of wastewater, ensuring longevity and reliability in these environments.
Rubber joints are used in pipelines transporting oil, gas, and other hydrocarbons. They must resist high pressures and temperatures while providing flexibility to accommodate the movements caused by thermal expansion and ground shifts.
Heating, ventilation, and air conditioning systems utilize rubber joints to prevent noise and vibration transmission through ductwork and piping. They also manage the expansion and contraction due to temperature changes within these systems.
Manufacturing plants with complex piping networks rely on rubber joints to enhance system flexibility. They are crucial in processes involving high-temperature fluids or chemicals, where movement absorption and corrosion resistance are necessary.
Several case studies highlight the effectiveness of rubber joints in piping systems.
In a thermal power plant, the installation of rubber joints significantly reduced stress on steam pipes. Through finite element analysis, it was observed that stress concentrations decreased by 30%, enhancing the overall safety and lifespan of the piping system.
Ships and offshore platforms utilize rubber joints to accommodate the dynamic movements of the structure and thermal expansion of pipes. A study on a naval vessel showed that the use of rubber joints reduced maintenance costs by 25% due to decreased wear and tear on the piping infrastructure.
Proper installation and maintenance are vital to the performance of rubber joints.
Ensuring that rubber joints are installed without pre-stressing is crucial. The alignment of the piping system should be checked thoroughly before installation. Flange bolts should be tightened gradually in a star pattern to distribute pressure evenly across the joint.
Routine inspections help in early detection of wear, cracks, or degradation due to environmental exposure. Maintenance schedules should include checks for chemical compatibility and physical integrity, especially in systems transporting corrosive or abrasive materials.
Signs such as swelling, hardness changes, or leaks indicate that a rubber joint may need replacement. Implementing a proactive replacement strategy can prevent unexpected system failures and costly downtime.
The field of rubber joint technology is evolving, with innovations aimed at improving performance and durability.
New elastomeric compounds are being developed to enhance resistance to extreme temperatures, chemicals, and pressures. These materials expand the application range of rubber joints into more demanding environments, such as cryogenic systems and high-temperature reactors.
FEA allows engineers to simulate the behavior of rubber joints under various conditions, optimizing designs for specific applications. This predictive capability leads to more reliable joints with improved performance characteristics.
Integration of sensors within rubber joints enables real-time monitoring of stress, temperature, and deformation. This data supports predictive maintenance strategies, enhancing system reliability and reducing the risk of failure.
The use of rubber joints directly influences the efficiency and lifespan of piping systems.
By absorbing vibrations and reducing mechanical stress, rubber joints minimize energy losses within the system. This leads to improved operational efficiency, particularly in systems where fluid dynamics are critical to performance.
Flexible joints mitigate the wear and fatigue on pipes and connected equipment. This results in extended intervals between maintenance activities and reduces the likelihood of catastrophic failures, yielding significant cost savings over the system's life.
Compliance with industry standards ensures that rubber joints meet safety and performance requirements.
Standards such as the ASTM F1123 and ISO 4633 specify the materials, dimensions, and testing procedures for rubber joints. Adherence to these standards guarantees that the products are suitable for their intended applications and perform reliably under specified conditions.
Manufacturers implement rigorous quality control processes, including pressure testing, material analysis, and dimensional inspections. Certifications from recognized bodies provide assurance of product quality and conformity.
Environmental factors influence the selection and performance of rubber joints.
In systems where joints are exposed to chemicals, selecting the appropriate elastomer resistant to the specific chemicals is critical. Failure to do so can lead to joint degradation and potential leakage of hazardous substances.
Extreme temperatures can affect the elasticity and durability of rubber joints. Materials must be chosen based on the operating temperature range to ensure consistent performance without hardening or softening of the rubber.
Rubber joints are integral components that enhance the flexibility, efficiency, and longevity of piping systems across a multitude of industries. By accommodating movements due to thermal changes, vibrations, and misalignments, they prevent mechanical failures and reduce maintenance costs. The ongoing advancements in material technology and design methodologies continue to expand their capabilities, making them indispensable for modern infrastructure. Incorporating high-quality rubber joint solutions is a strategic investment in the reliability and performance of piping systems.
